Viper-1
Dual Camera Video Streaming
Surveillance System
Viper-1
Dual Camera
Video Streaming
Surveillance System
IntelliCam LLC
Project
The Viper-1 is a compact, battery powered, two camera video streaming surveillance system that can be controlled via SMS.
The Viper-1 is a compact, battery powered, two camera video streaming surveillance system that can be controlled via SMS.
Engineering Accomplishments
The Viper-1 was one of the most complex and compact systems I designed for IntelliCam LLC. It featured an HD DVR, 4G modem for streaming, another 4G modem for control and notifications, a robust power switching and management system, and a control system that was activated by IntelliCam sensors. This system was able to switch from one to two cameras and HD recording to live video streaming with SMS control. SMS was also used to receive notifications from the system. Lastly the weatherproof enclosure was compact, and featured a Simple User Interface (SUI) for quick and easy deployment.
Features
- Plug and Play Dual Camera Streaming
- Over 2 Years Battery Life in Standby
- Over 12 Hours Battery Life Recording and Streaming
- Up to 2TB SD Card
- SMS Notification Modem
- Compact Size
- Easy to Conceal
- Weatherproof
- Ruggedized Aluminum Enclosure
- Multiple Camera Options
- Multiple Sensor Options
- Multiple Battery Pack Options
- Simple User Interface
Description
The Viper-1 is a modular system that has an internal Flashback-4 DVR for video recording, an internal Flashback-4G modem for video streaming, and an internal SMS notification modem. It has an external swappable battery pack, integrated wireless RF receiver, and is in a ruggedized aluminum weatherproof enclosure. It can be used with any one of our available cameras, and can be triggered by any of our sensors.
Common Use Cases
- Portable Pole Cam
- Live Surveillance
- Fugitive Apprehension
- Drop Car Installations
Project List
Major Projects
- Initial Product Design
- Electrical Engineering
- Mechanical Engineering
- Firmware/Software Engineering
- DVR and Modem Integration
- SMS Control
- RF Modem and Sensor Integration
- User Guide
Electrical
- Full Electrical Design
- Power Management to Multiple Components
- Power Switching Control

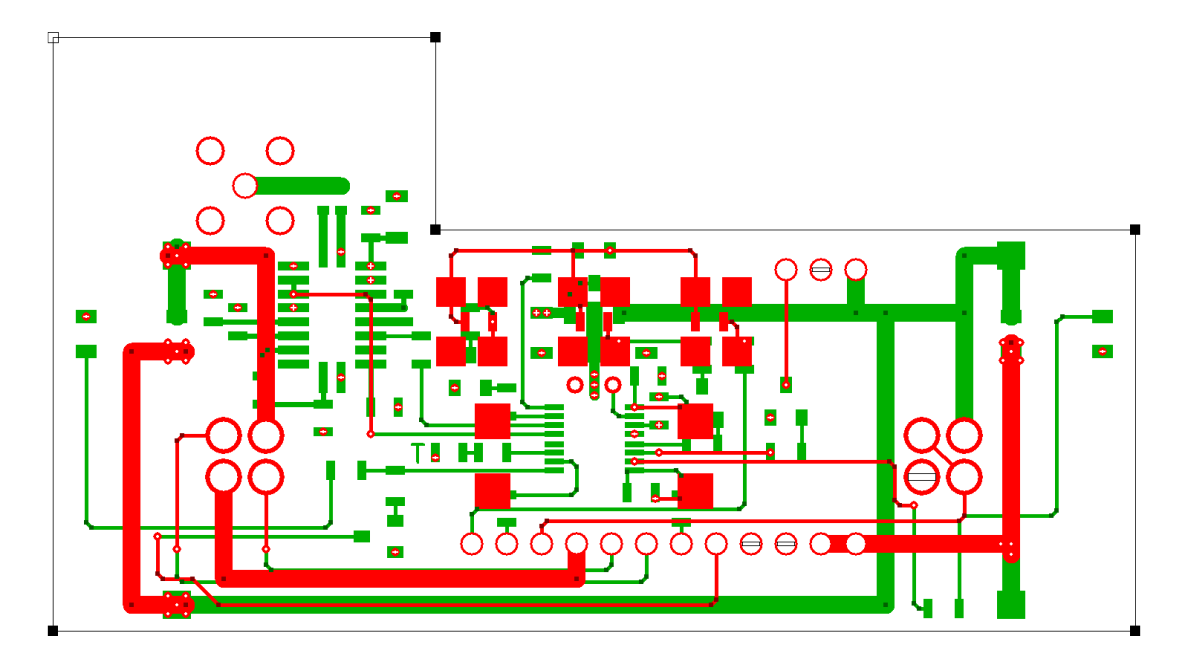

- Multiple Compact PCBs Designed
Mechanical
- Compact Weatherproof Enclosure
- Easy SD and SIM Card Access
- Smart Design for Quick Deployment
- Simple User Interface

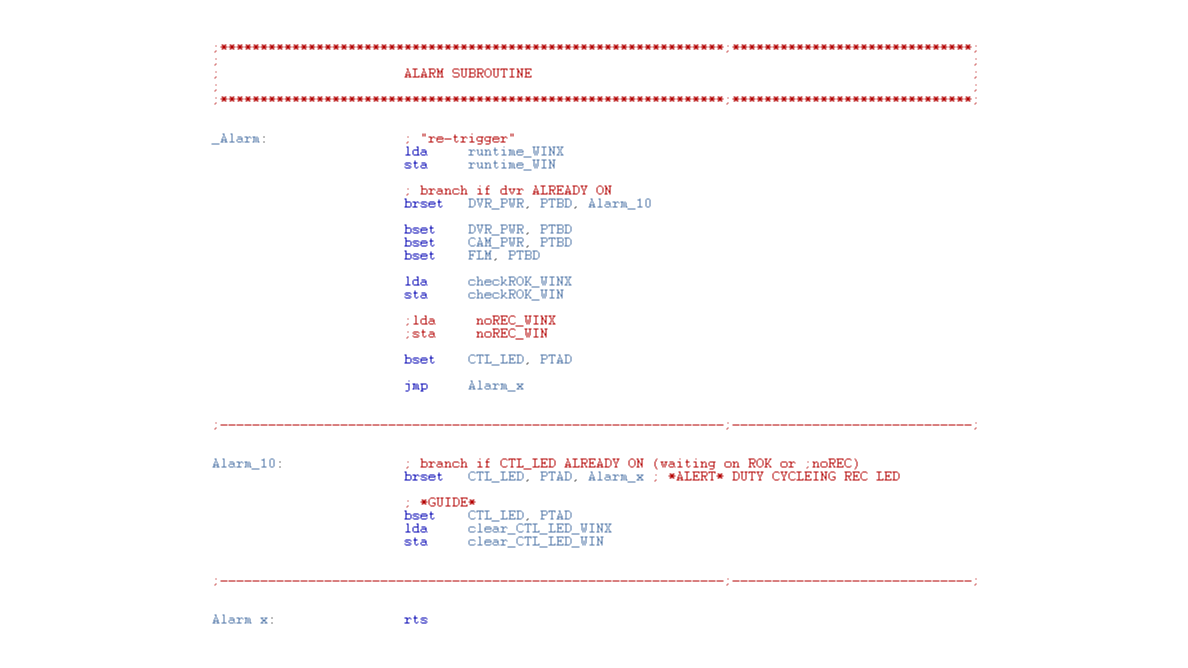

Firmware
Software
- Ultra Low Power 8-bit Microcontroller
- Simple User Interface
- Backend User Access to Streaming Video
- Backend User Access to DVR Settings
- Control Modem with SMS Commands
Project List
RF/Sensor Integration
- RF Modem Control
- RF Power Management
- Sensor Activation Control
Carrying Case
- Full Kit Design
- Foam Insert Design for Quick Deployment
| Major Projects |
- Initial Product Design
- Electrical Engineering
- Mechanical Engineering
- Firmware/Software Engineering
- DVR and Modem Integration
- SMS Control
- RF Modem and Sensor Integration
- User Guide
|
| Electrical |
- Full Electrical Design
- Power Management to Multiple Components
- Power Switching Control
- Multiple Compact PCBs Designed
|
| Mechanical |
- Compact Weatherproof Enclosure
- Easy SD and SIM Card Access
- Smart Design for Quick Deployment
- Simple User Interface
|
Firmware
Software |
- Ultra Low Power 8-bit Microcontroller
- Simple User Interface
- Backend User Access to Streaming Video
- Backend User Access to DVR Settings
- Control Modem with SMS Commands
|
| RF/Sensor Integration |
- RF Modem Control
- RF Power Management
- Sensor Activation Control
|
| Carrying Case |
- Full Kit Design
- Foam Insert Design for Quick Deployment
|
Documentation
Contact me for a sample User Guide that I designed for IntelliCam.
